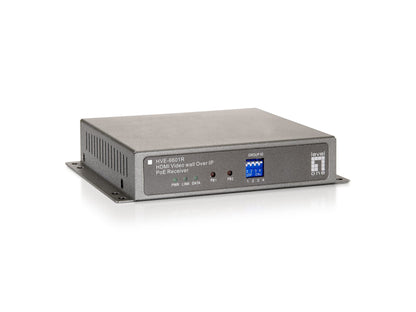

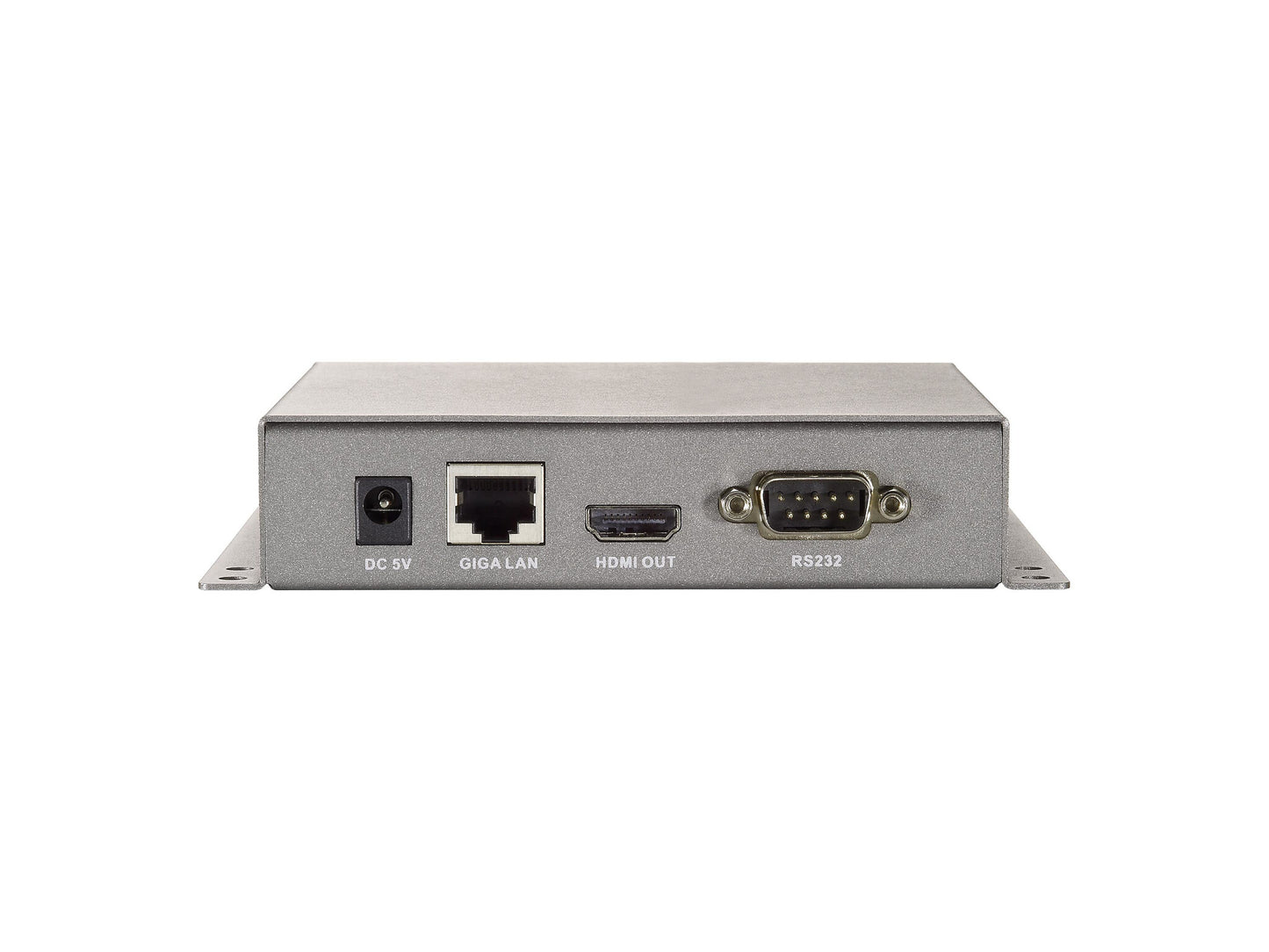

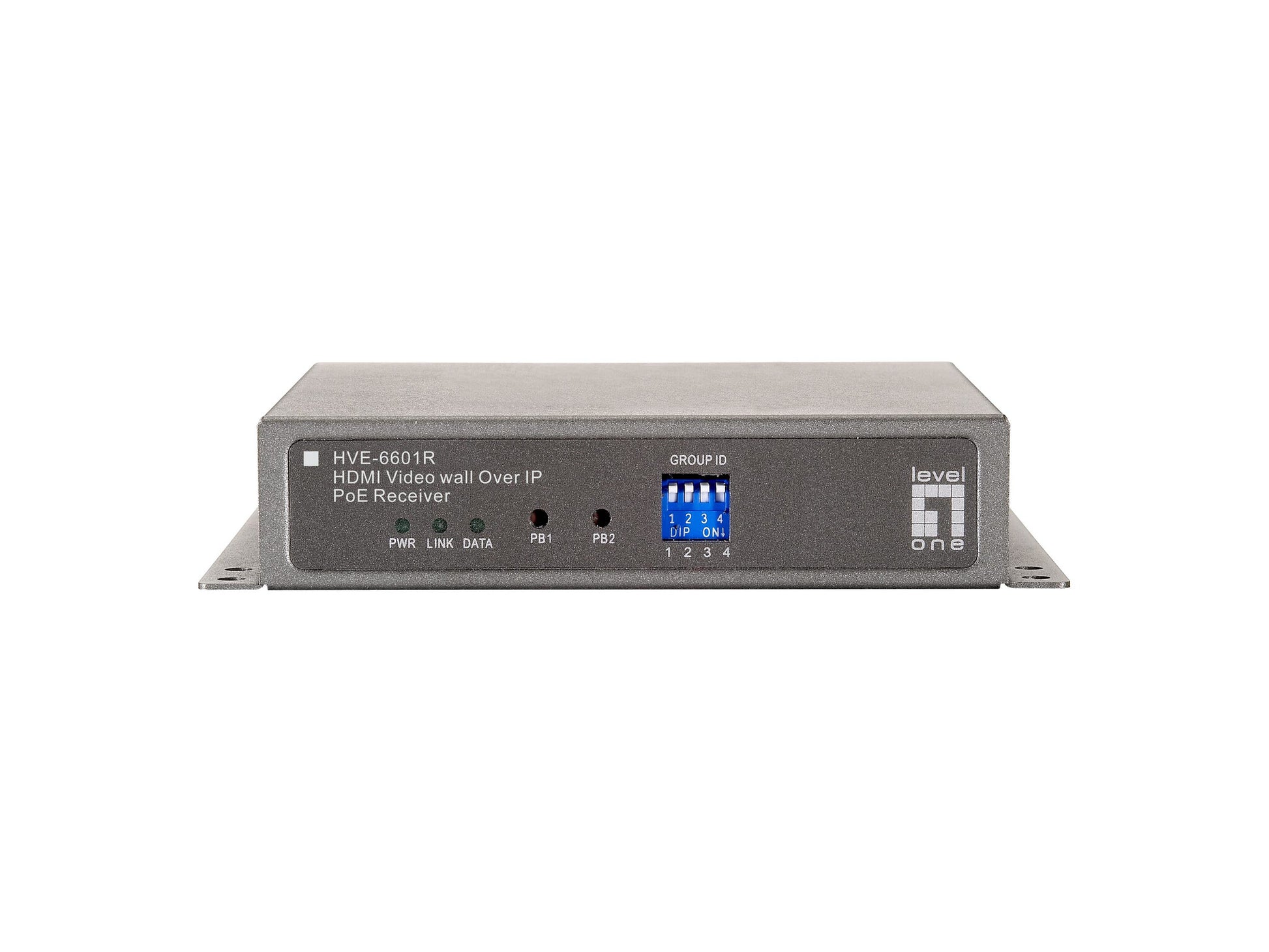

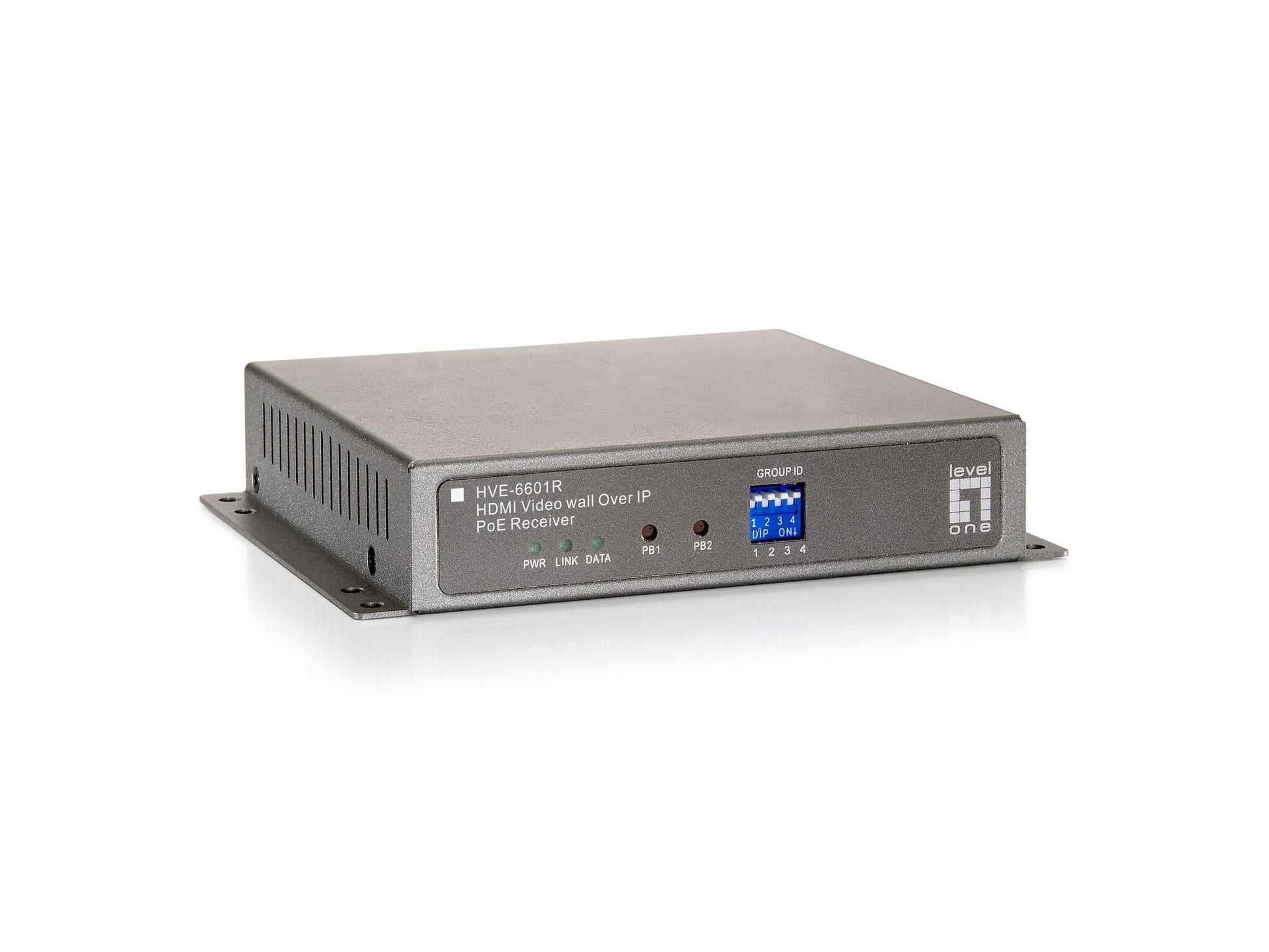

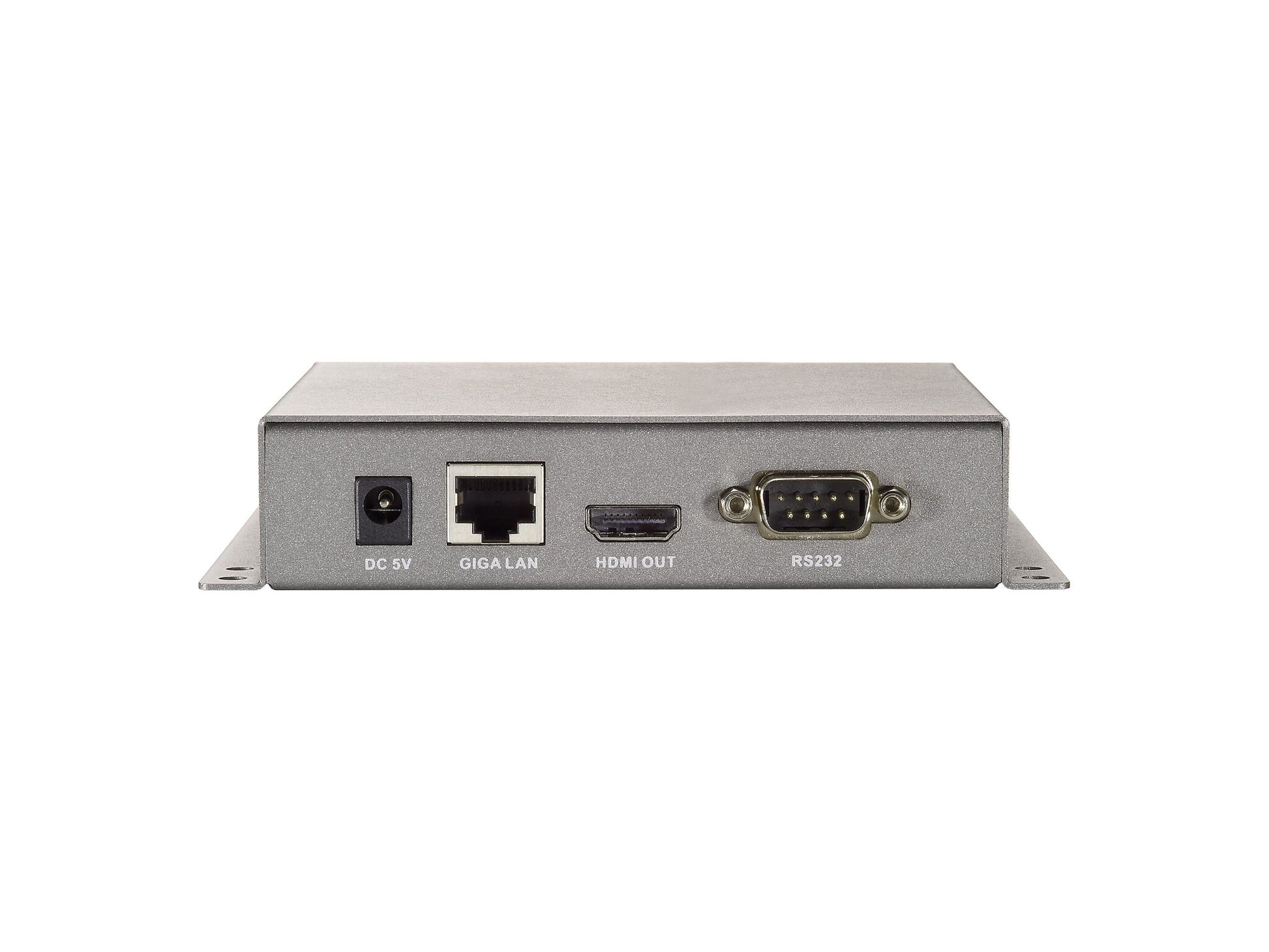

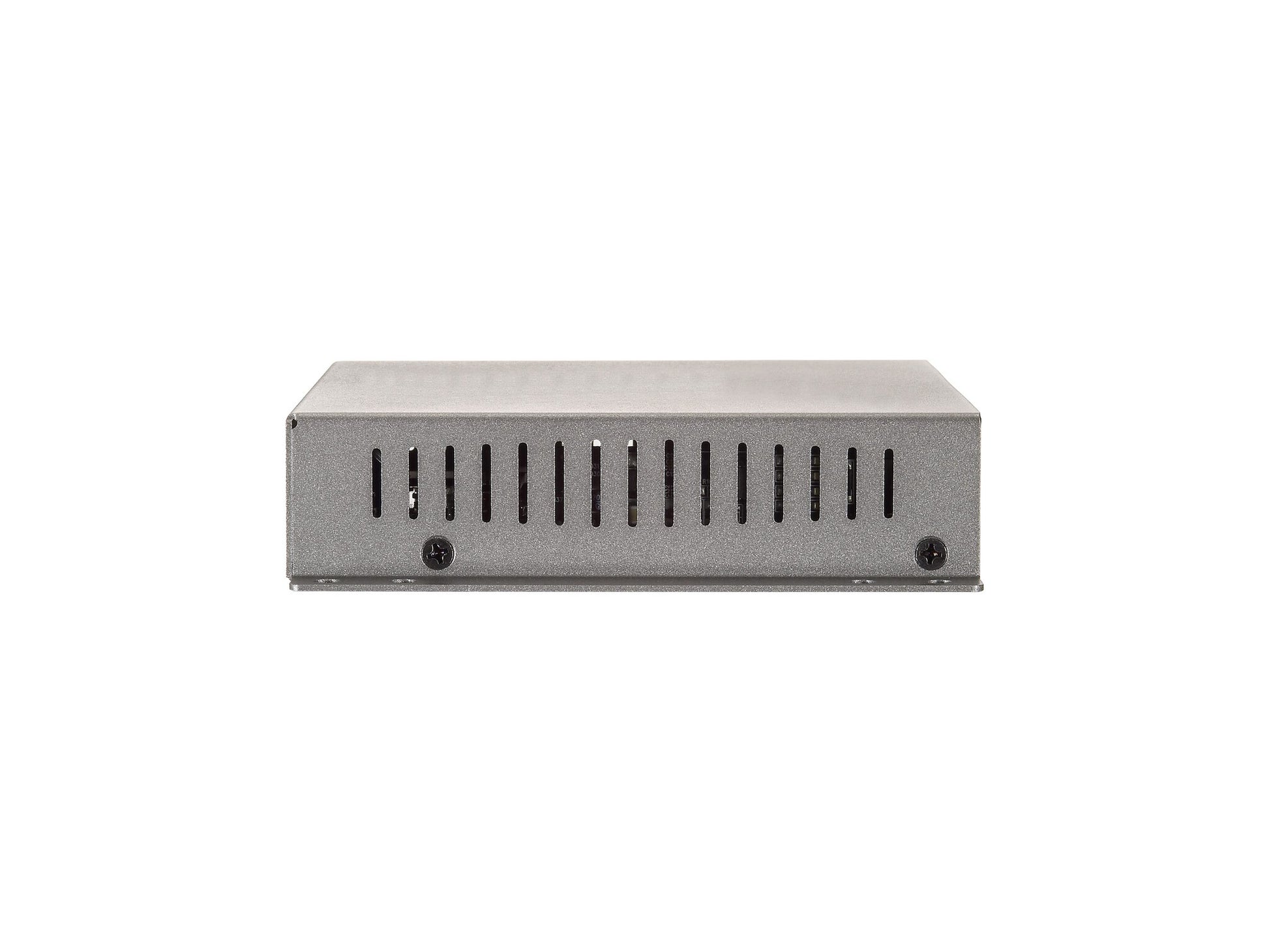

LevelOne HVE-6601R AV-förlängare AV-mottagare Grå

• AV-mottagare 1920 x 1080 pixlar Grå
• HDCP
• Likströmsingång

LevelOne HVE-6601R. Modell: AV-mottagare, Maximal upplösning: 1920 x 1080 pixlar, Kabeltyper som stöds: Cat5e, Cat6, Cat7. HDMI-version: 1.3b, Seriellt gränssnitt: RS-232. Driftspänning: 5 V, Strömförbrukning (mottagare) (max): 8 W, Ström: 1 A. Bredd: 114 mm, Djup: 140 mm, Höjd: 28 mm. Förpackningens bredd: 148 mm, Låddjup: 240 mm, Höjd: 80 mm

Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading
Up to 8 transmitters and 64 receivers possible in a single Video Wall system
Transmits HDTV resolutions up to 1080p.
Transmits an HDMI signal over one CAT5e/6/7 cable.
HDMI 1.3b and HDCP compliant
Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
Dual power input: 802.3af compliant PoE & DC5V
Multicasting group with Gigabit Ethernet switch (required 802.1Q VLAN & IGMP function)
Built-in DIP switch to change Group ID and Utility for remotely
RS-232 Control Pass-Thru to control HDMI display from transmitter side
Plug and Play installation, free bundle utility for advance setting
